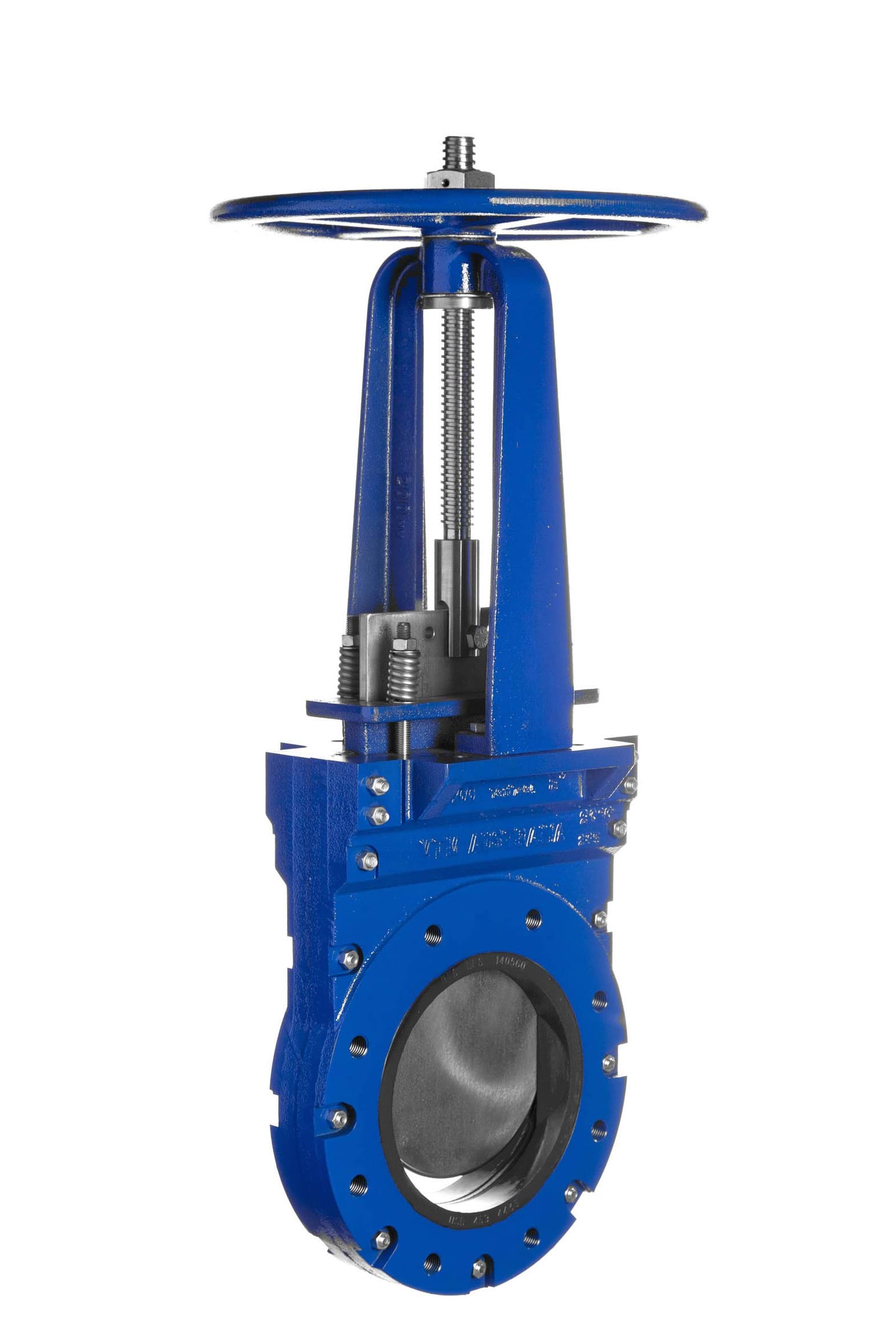

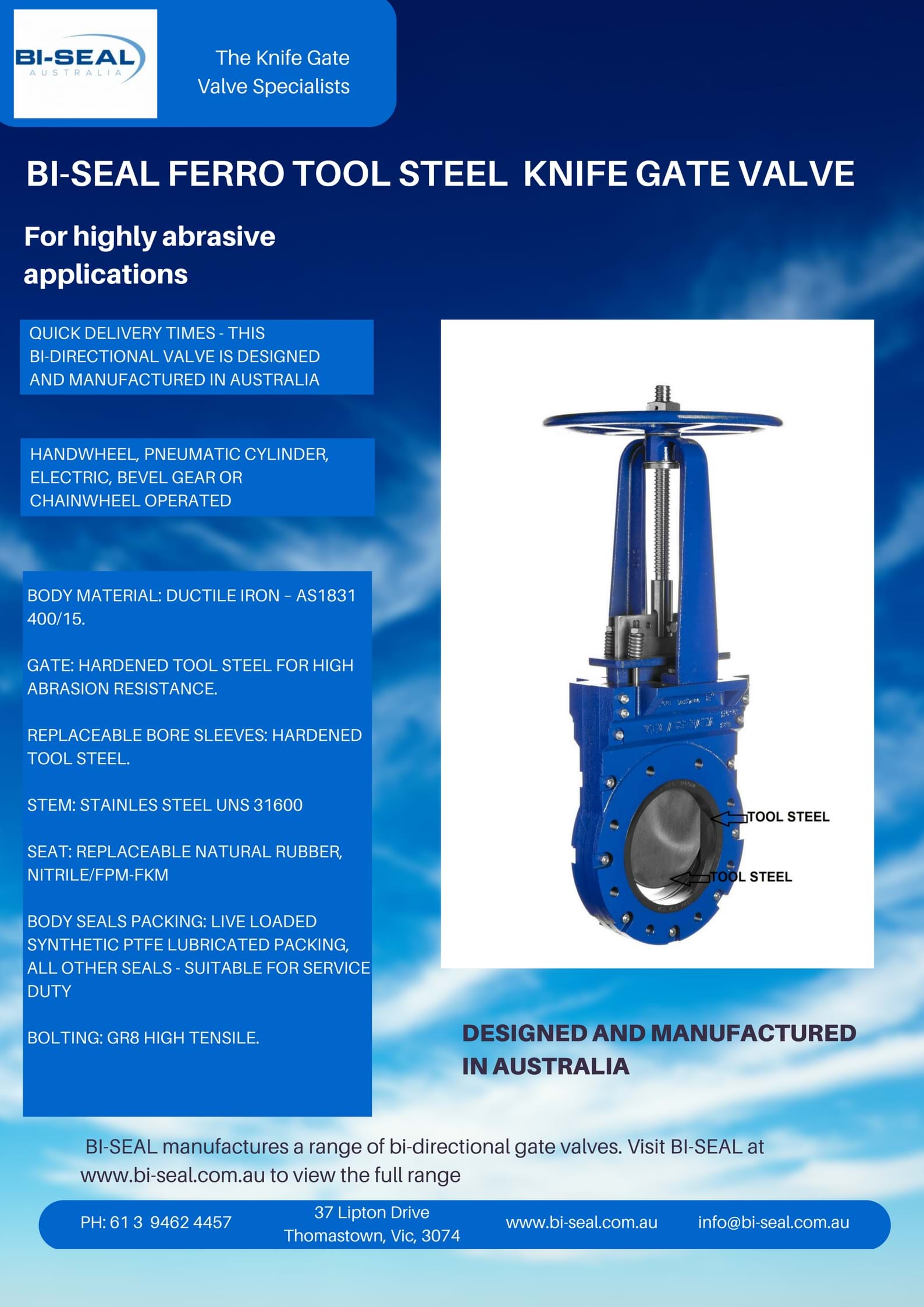

TOOL STEEL FERRO FRP - KNIFE GATE VALVE
For highly abrasive slurries - complete with replaceable tool steel gate & bore sleeves
AVAILABILITY
Quick delivery times - This valve is designed and manufactured in Australia
OPERATION

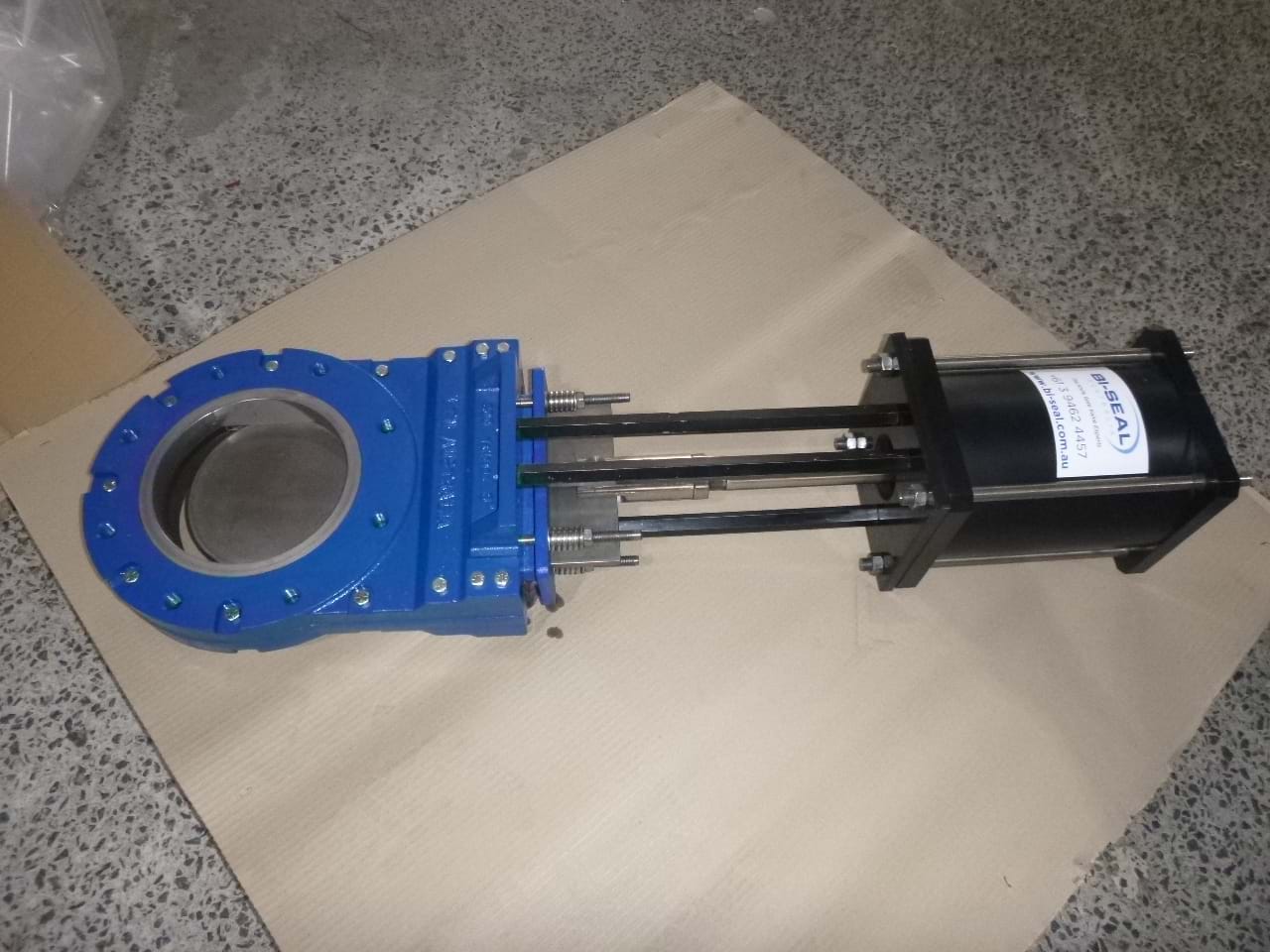

Handwheel, pneumatic cylinder, electric, bevel gear or chainwheel operated
DESIGN FEATURES
Bi-Directional Knife Gate Valve
Body Material:
- SG IRON
Lining:

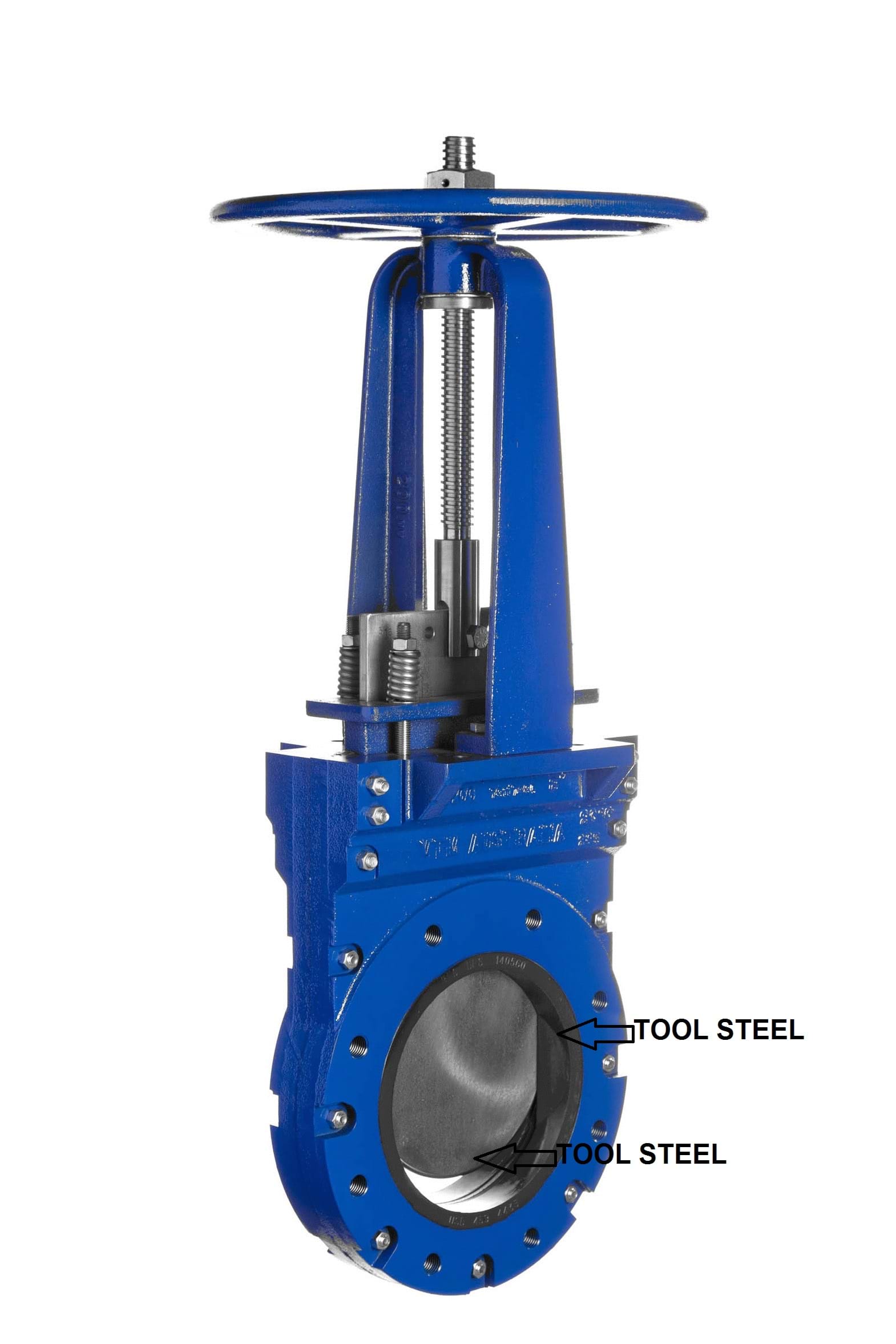

Two hardened TOOL STEEL bore sleeves
GATE:
Hardened TOOL STEEL
STEM:
Stainless Steel ASTM A276/A484/A484M
SEAT:
Replaceable Natural Rubber, “A” Scale Shore Hardness
BODY SEALS PACKING:
Live loaded Synthetic PTFE lubricated packing, All other seals - Suitable for Service Duty
BOLTING:
GR8 high tensile.
DRILLING
Australian and international flange drilling available
SIZING
Available in 50mm up to 750mm
Data Sheet and General Arrangement drawings available upon request
