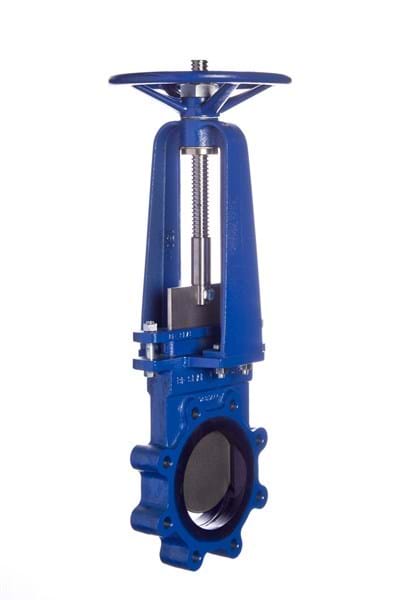

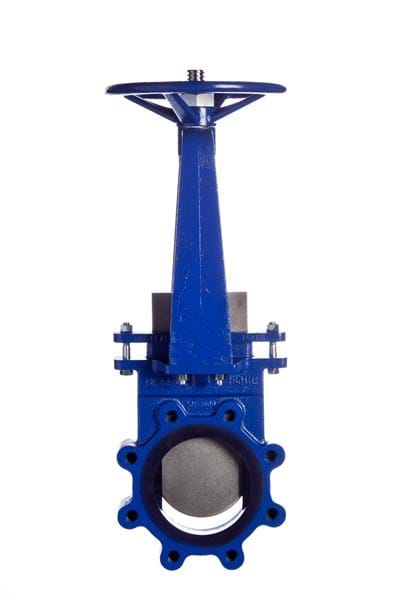

FERRO POLY1 - KNIFE GATE VALVE
Severe duty, high chloride or acidic applications
High performance one piece and two piece bi-directional Knife Gate Valves. Suitable for general mining, as well as abrasive/corrosive applications (up to 85 degrees centigrade)
AVAILABILITY
Quick delivery times - This valve is designed and manufactured in Australia
OPERATION
Handwheel, pneumatic cylinder, electric, bevel gear or chainwheel operated
DESIGN FEATURES
Bi-Directional Knife Gate Valve
- SG IRON
Factory Bonded Liner. Liners are bonded to the valve bodies at the factory. There are no parts to fit and epoxy together.
- The one piece polyurethane liner extends into the chest and packing chamber

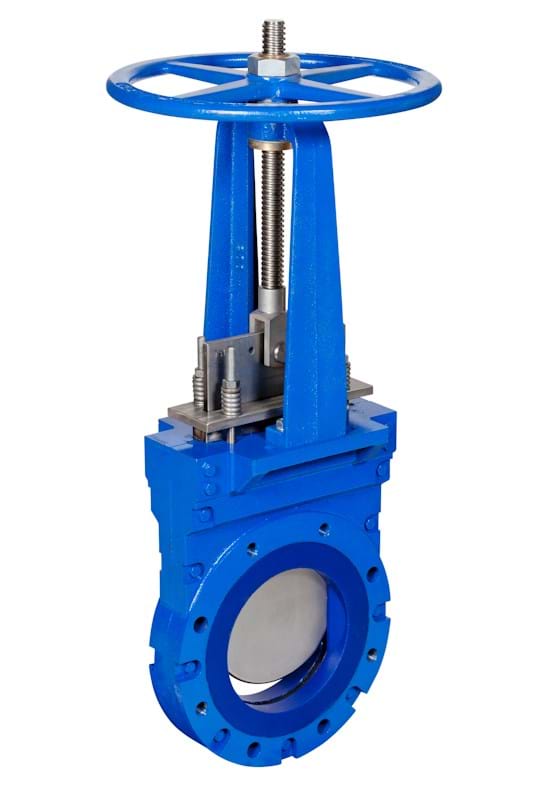

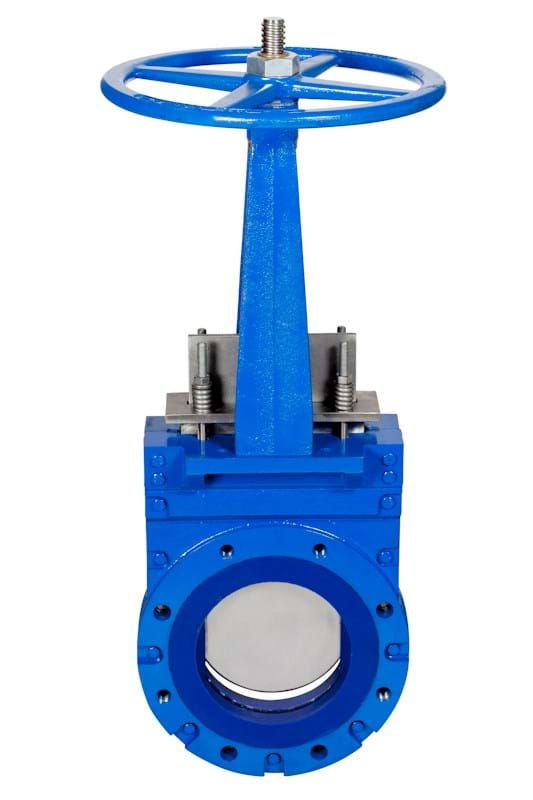

- The two piece polyurethane liner also extends into the chest and packing chamber
316 Stainless Steel,Hastelloy, Alloy 31, UNS32750, UNS31803
Stainless Steel ASTM A276/A484/A484M
- Integral with lining in the one piece
- Replacable seat in the 2 piece
Live loaded Synthetic PTFE lubricated packing, All other seals - Suitable for Service Duty
DRILLING
Australian and international flange drilling available
SIZING
Available in 50mm up to 750mm
