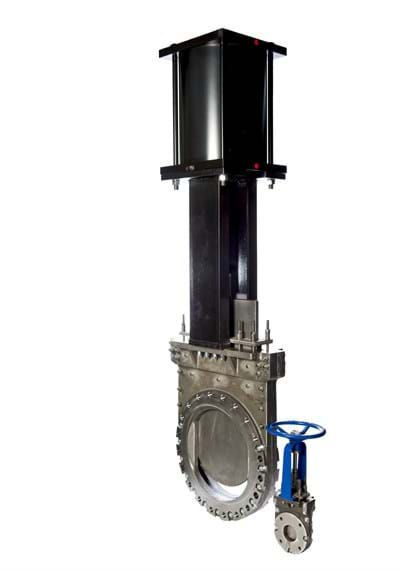

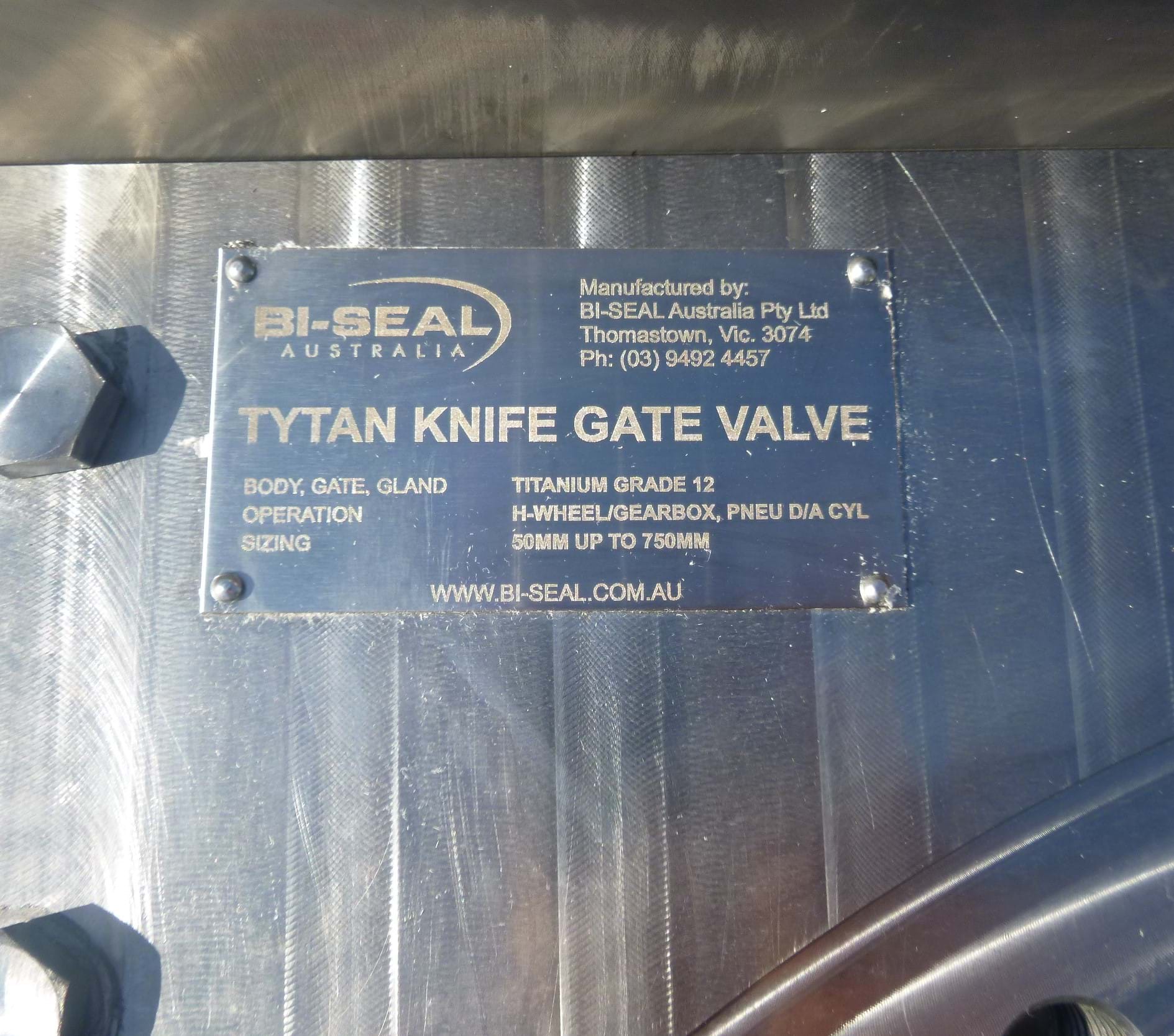

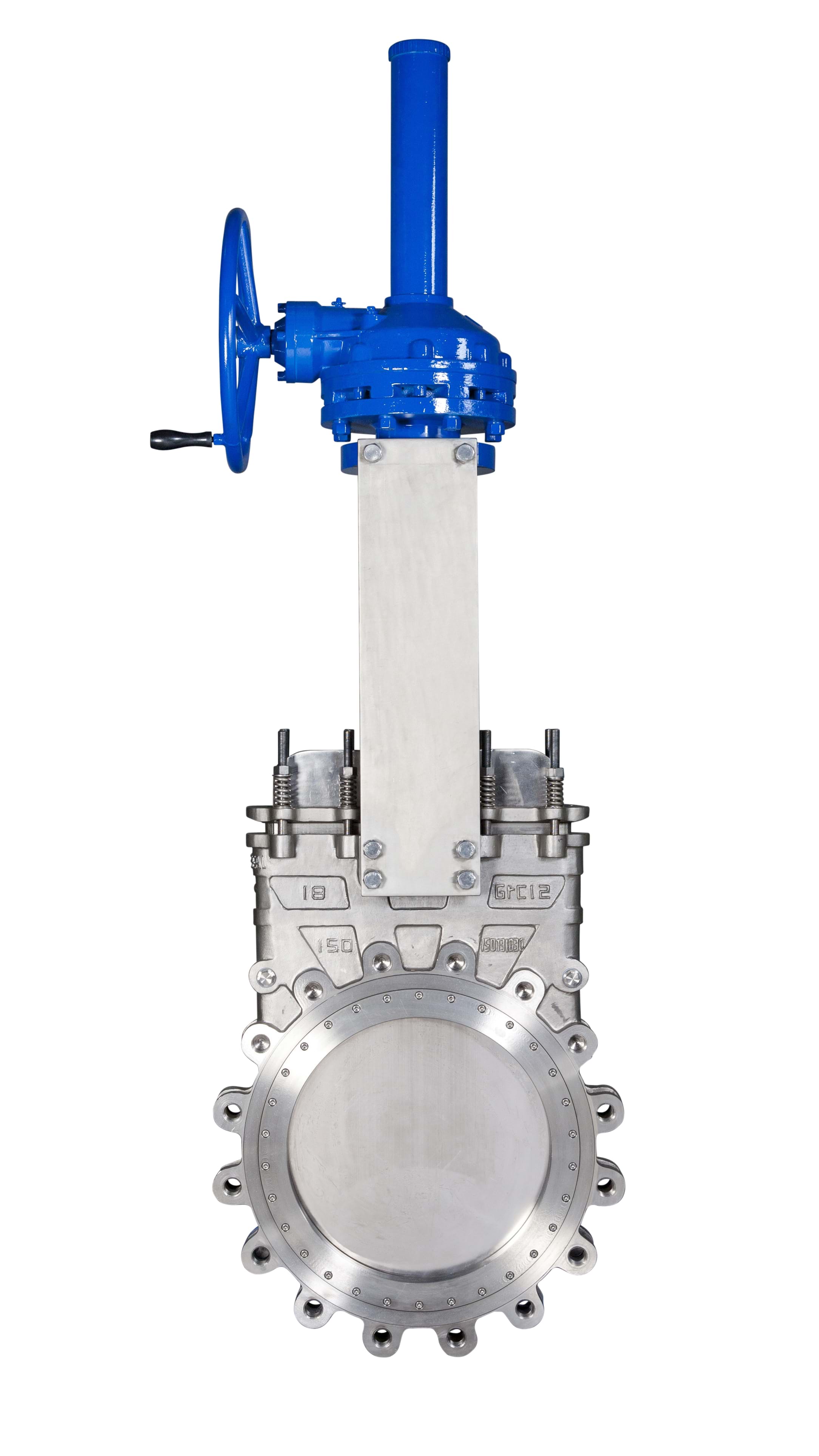

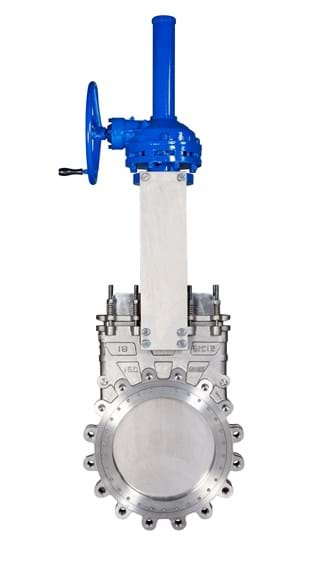

TYTAN KNIFE GATE VALVE
TITANIUM for severe duty, high chloride or acidic applications.
AVAILABILITY
Quick delivery times - This valve is designed and manufactured in Australia
OPERATION

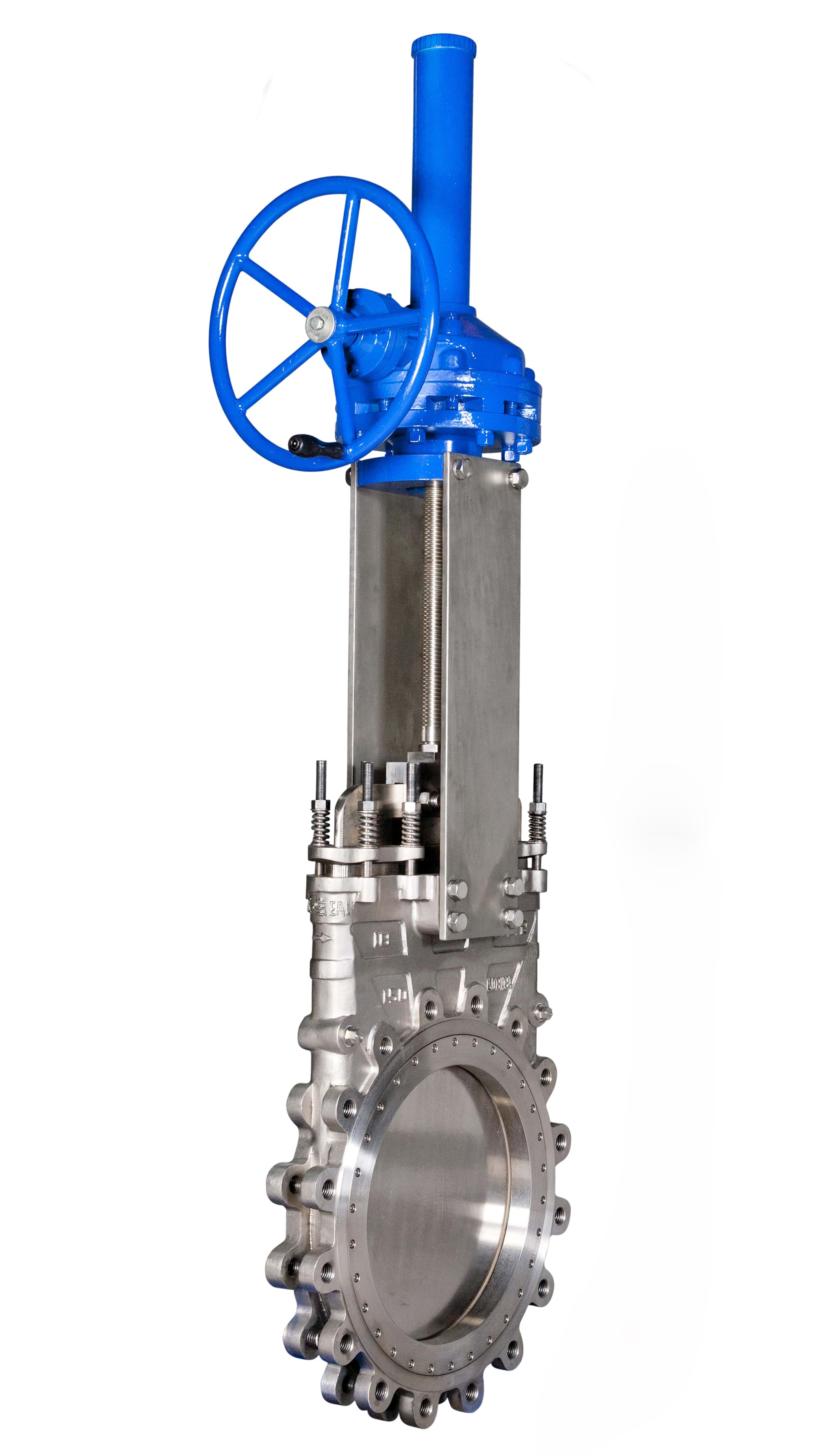

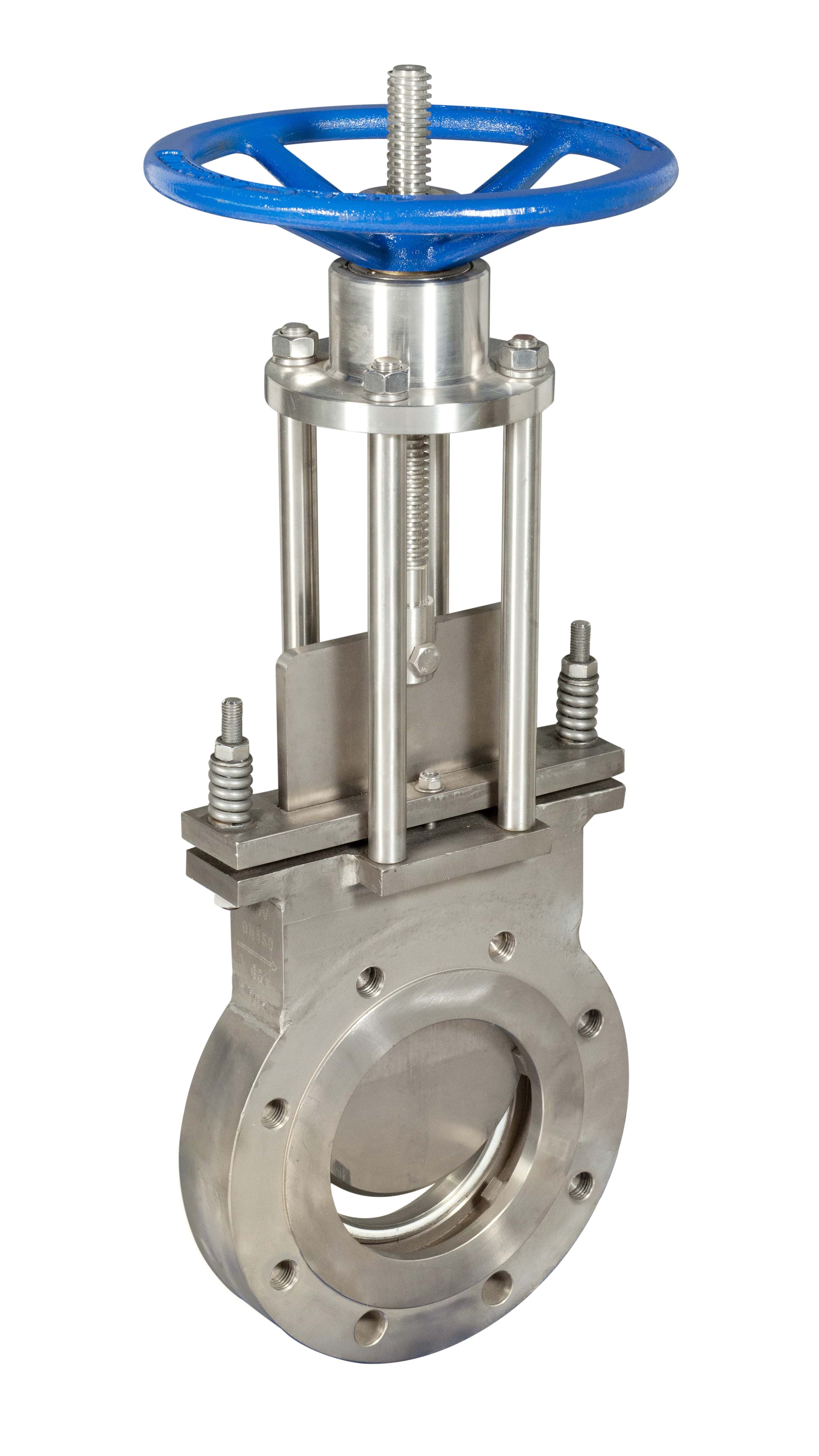

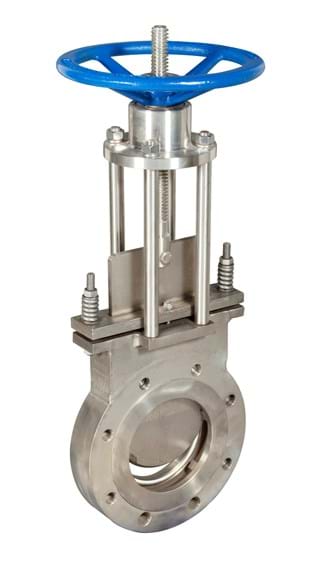

Handwheel, pneumatic cylinder, electric, bevel gear or chainwheel operated
DESIGN FEATURES
TITANIUM Grade 12
GATE
TITANIUM Grade 12
STEM
Stainless Steel ASTM A276/A484/A484M
SEAT
Replaceable Bromo Butyl Rubber, 68 - 70 “A” Scale Shore Hardness
BODY SEALS PACKING
Live loaded Silicone cored Teflon packing, All other seals - Suitable for Service Duty
BOLTING
ALLOY 718 or B8M Class 2 body bolting.
DRILLING
Australian and international flange drilling available
SIZING
Available in 50mm up to 750mm
