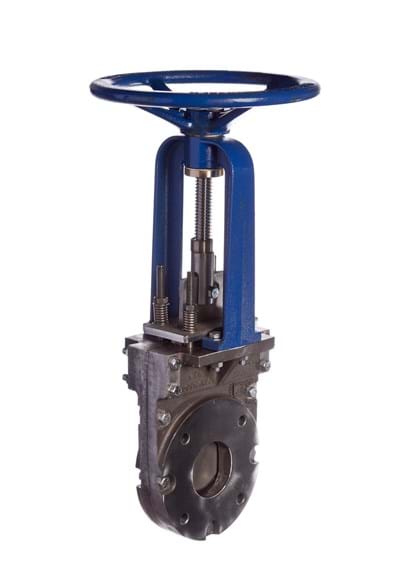

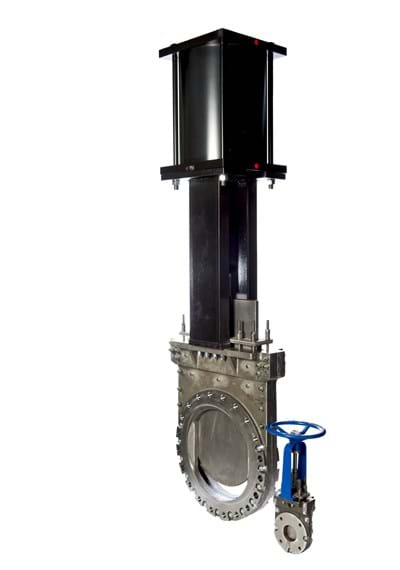

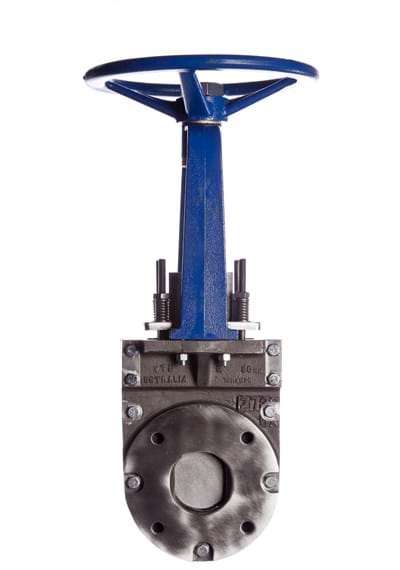

ALLOYSEAL SERIES - KNIFE GATE VALVE
Severe duty, high pressure, high chloride or acidic applications
AVAILABILITY
Quick delivery times - This valve is designed and manufactured in Australia
OPERATION

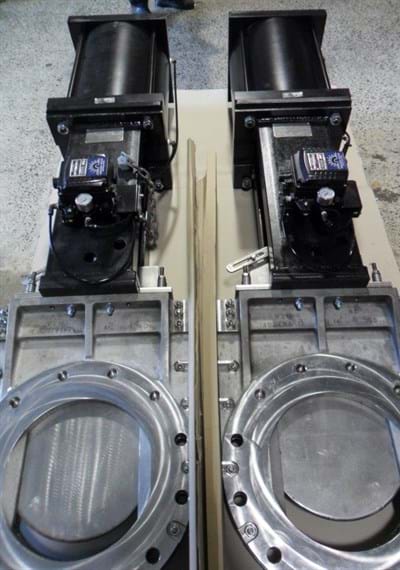

Handwheel, pneumatic cylinder, electric, bevel gear or chainwheel operated
DESIGN FEATURES
Body Material - choices of Australian made Alloys:
- Super Duplex Stainless Steel to A995 Gr.5A (ALLOYSEAL SUPER)
- Hastelloy to ASTMA494CW12M (ALLOYSEAL HAST)
- Duplex ASTMA995GR4A (ALLOYSEAL)
GATE
Choice of Materials below:
- Super Duplex Stainless Steel UNS 32750
- Hastelloy C276
- Duplex UNS31803
STEM
Stainless Steel ASTM A276/A484/A484M
SEAT
Replaceable Bromo Butyl Rubber, 68 - 70 “A” Scale Shore Hardness
BODY SEALS PACKING
Live loaded Silicone cored Teflon packing, All other seals - Suitable for Service Duty
BOLTING
ALLOY 718 or B8M Class 2 body bolting.
DRILLING
Australian and international flange drilling available
SIZING
Available in 50mm up to 750mm
Data Sheet and General Arrangement drawings available upon request
