FERRO RUBBER - KNIFE GATE VALVE
Severe duty acidic applications
AVAILABILITY
Quick delivery times - This valve is designed and manufactured in Australia
OPERATION

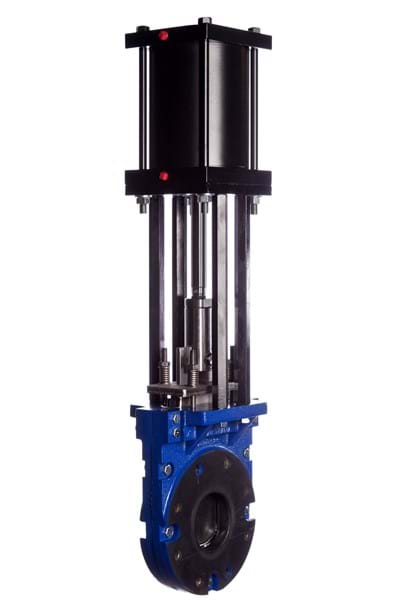

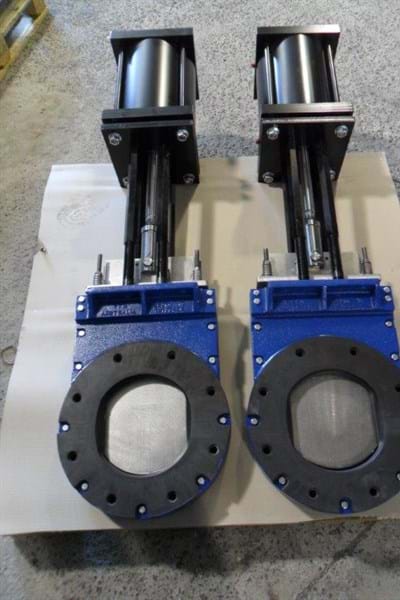

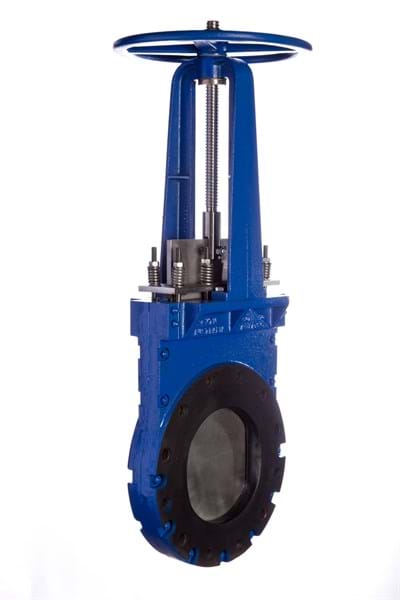

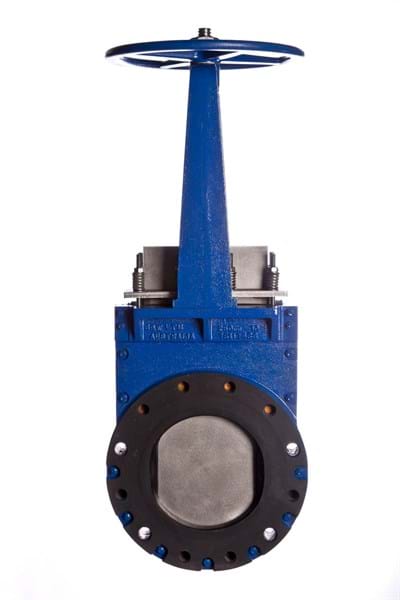

Handwheel, pneumatic cylinder, electric, bevel gear or chainwheel operated
DESIGN FEATURES

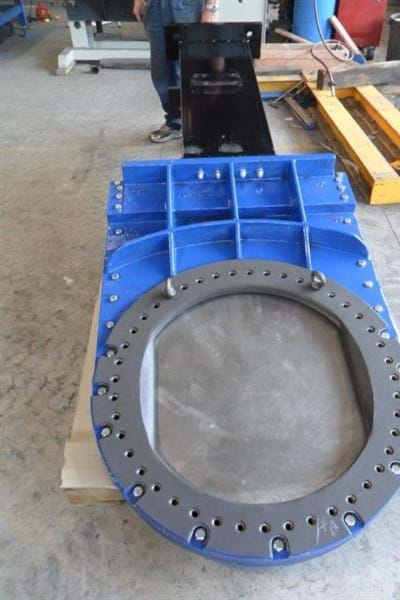

Body Material - Ductile Iron – AS1831 500/7 with Bromo Butyl Rubber Lining (Lining to have 68 – 70 “A” Scale Shore Hardness)
GATE:
Choice of Materials below:
- Super Duplex Stainless Steel UNS 32750
- Hastelloy C276
- Duplex UNS31803
STEM:
Stainless Steel ASTM A276/A484/A484M
SEAT:
Replaceable Bromo Butyl Rubber, 68 - 70 “A” Scale Shore Hardness
BODY SEALS PACKING:
Live loaded Silicone cored Teflon packing, All other seals - Suitable for Service Duty
DRILLING
Australian and international flange drilling available
SIZING
Available in 50mm up to 750mm
Data Sheet and General Arrangement drawings available upon request
